24. CPLD И FPGA


  THIS SECTION IS UNDER CONSTRUCTION






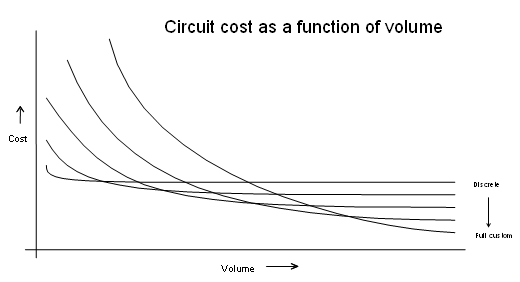

Flexware

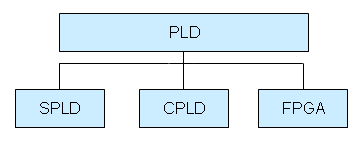

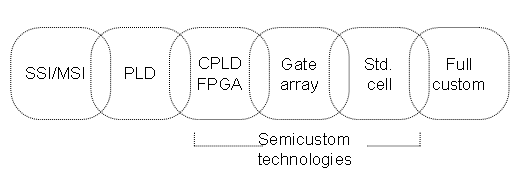

PLD	Programming logic devices




SPLD	Simple PLD (both PLA and PAL)




  PLA

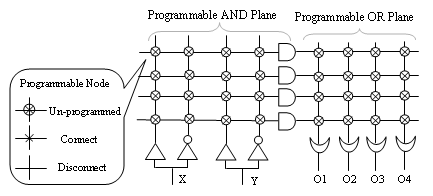

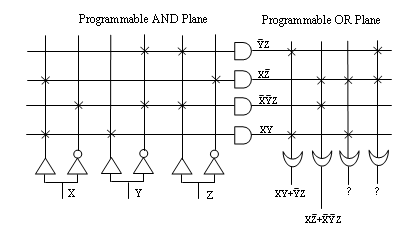

PLA	Programming logic array
	small FPD contain 2 level of logic AND and OR plane,
	both planes is programmable









  PAL

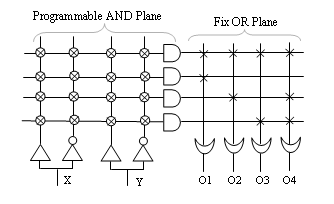

PAL	Programmable array logic
	small FPD contain programmable AND plane, fixed OR plane

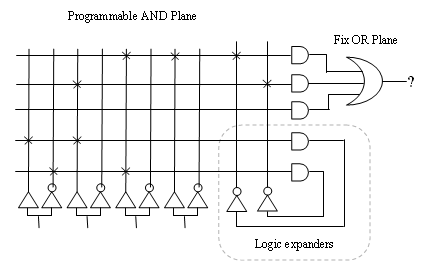

Logic expander:



	PAL GAL
	CUPL

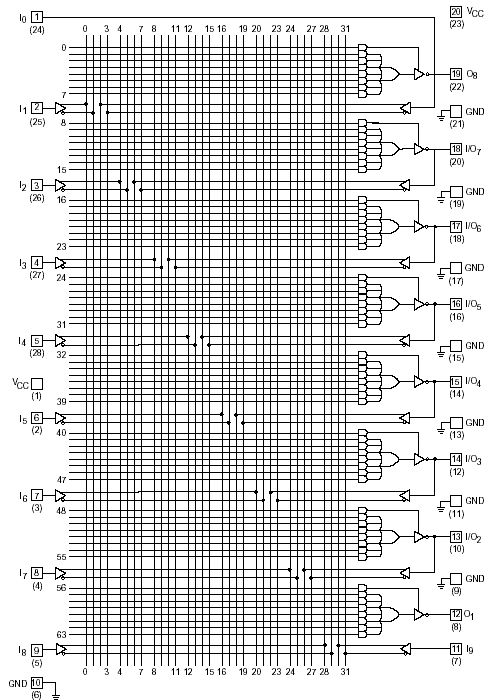

Lattice PAL16L8:



Как мы видим контакты:
	10		GND
	1-9,11		in
	13-18		in/out
	12,19		out
	20		VCC

Пример программы на PALASM для дешифратора:
-----------------------------------------------------------------------

TITLE	 Address Decoder
PATTERN	 Test 1
REVISION A
AUTOR	 AVP
COMPANY	 PHG
DATA	 26/2/06
CHIP	 DECODER1 PAL16L8
; pins 1   2   3   4   5    6  7   8    9   10
       A10 A11 A12 A13 A14 A15 A16 A17	A18 GND
; pins 11  12 13  14  15  16  17   18  19  20
       A19 NC A20 A21 A22 A23 A24  NC  CS  VCC

EQUATIONS

/CS = A24 * A23 * A22 * A21 * A20 * A19 * A18 * A17 * A16
    + A24 * A23 * A22 * A21 * /A11 * /A10

-----------------------------------------------------------------------




  CPLD

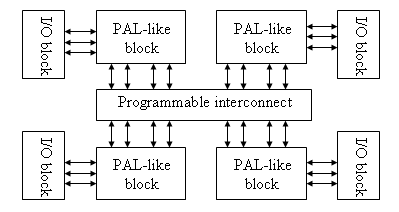

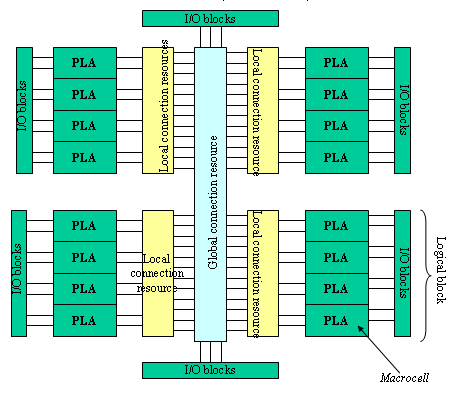

CPLD	Complex PLD
	multiple SPLD blocks in single chip










  FPGA


FPGA	Field Programmable Grid Array

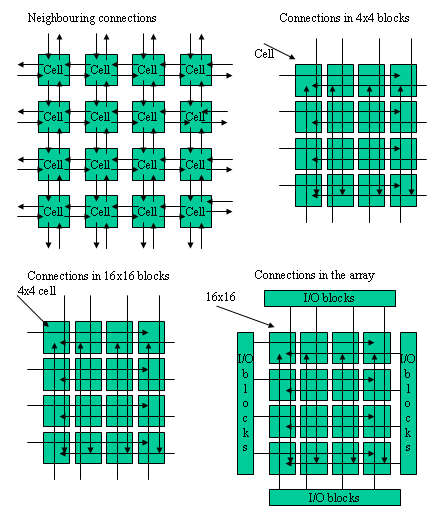

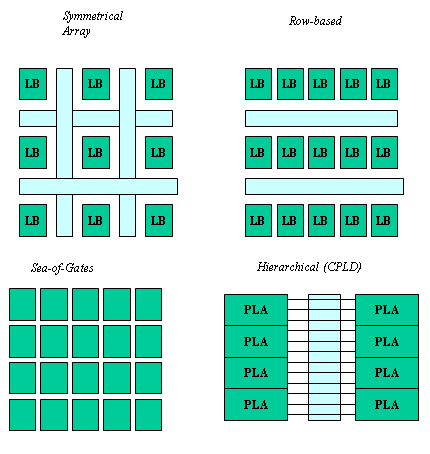

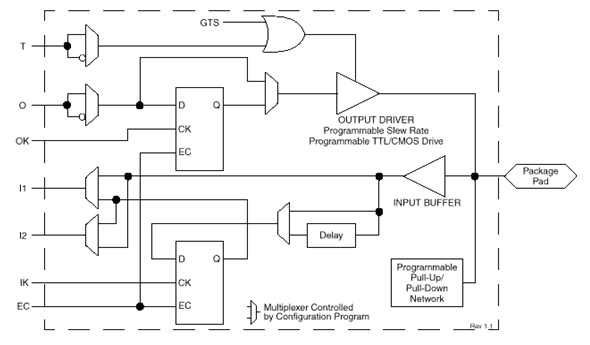

	Structure allow very high logic capacity













	Lookup table

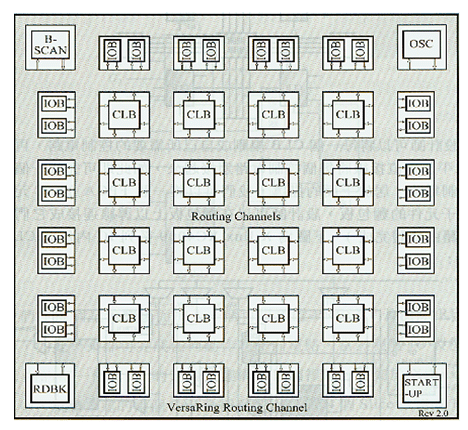

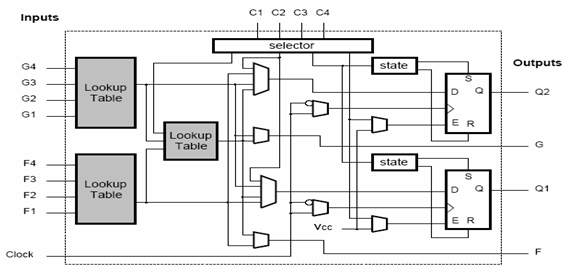

	CLB (configurable logic block)











FPGA


характеристики современных FPGA


Когда делают новый техпроцесс первым делом на нем выпускают не процессоры
а FPGA.

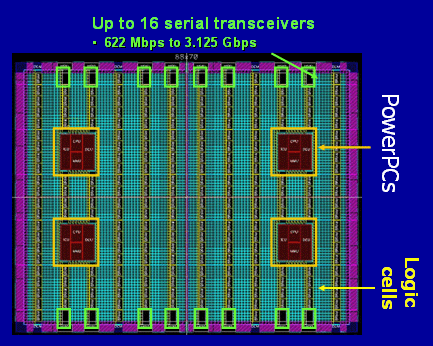

Military Xilinx Vertex-4E стоит $20,000 за chip.

	------------------------------
	тип	Экивалентных вентилей
	------------------------------
	SPLD	0-200
	CPLD	200-12000
	FPGA	1000-1000000
	------------------------------



Xilinx	Virtex		Full-feature SRAM-based FPGA
	Spartan		Low-cost reduced version
	CoolRunner	CPLD
Altera	Stratix		SRAM based FPGA
	Cyclone		Low-cost reduced version
	MAX		CPLD
	MAX-II		Flash based CPLD
Actel			Antifuse based FPGA (radiation tolerant)
			Flash based FPGA
Lattice			CPLD (EEPROM)
			Flash based FPGA




	Высокая плотность
	Энергонезависимость
	Не репрограммируются
