30.1.1. РЕАЛИЗАЦИЯ ALU НА VHDL.

Это пример реализации простого 4-х битного ALU на VHDL:
(Сигналы можно посмотреть в тексте программы ниже).

Управляющие сигналы:

	EN - Enable - 	разрешает использовать ALU
		      	без этого сигнала ALU не работает
	ENX - Enable Output - разрешает вывод результата на шину C
		     	(например для комманды CMP это не надо)
	OPCODE - Operation code - команда для ALU:
			000000	NOT B
			000001	A AND  B
			000010	A OR   B
			000011  A XOR  B
			000101	A NAND B
			000110  A NOR  B
			000111  A EQV  B
			001000	A SHL  1
			001001  A SHR  1
			010010  A RCL  1
			010011  A RCR  1
			010100  A SAL  1
			010101  A SAR  1
			100000  -A
			100001  A + B
			100010  A + B + CF
			100100  A - B
			100101  A - B - CF

	Как реализовать команды не требующие результата?
		ENX  OPCODE
		1    100100	  A - B	    (SUB)
		0    100100   Flg(A - B)    (CMP) no result, only flags set
		1    000001       A and B   (AND)
		0    000001   Flg(A and B)  (TEST) no result, only flags set




--
-- ALU_N.vhd
--
-- Generic ALU implementation
--

library ieee;
use ieee.std_logic_1164.all;

entity alu_N is
	generic(N: positive);
	port(
		A: in std_logic_vector((N-1) downto 0);	   -- Input Bus 0
		B: in std_logic_vector((N-1) downto 0);    -- Input Bus 1
		C: out std_logic_vector((N-1) downto 0);   -- Output Buse
		CI: in std_logic;			   -- carry flag in

		EN: in std_logic;			   -- Enable
		ENX: in std_logic;			   -- Enable Output
		RST: in std_logic;			   -- Reset

		OPCODE: in std_logic_vector (5 downto 0);  -- Opcode

							   -- Flags output
		CFLG: out std_logic;                         -- Carry flag
		ZFLG: out std_logic;			   -- Zero flag
		SFLG: out std_logic;			   -- Sign flag
		OFLG: out std_logic			   -- Overflow
	);
end  alu_N;


architecture Example of alu_N is

component add_NC is
	generic(N: positive);
	port(
		A: in std_logic_vector((N-1) downto 0);
		B: in std_logic_vector((N-1) downto 0);
		X: out std_logic_vector((N-1) downto 0);
		C: out std_logic;
		CI: in std_logic
	);
end component;

signal	AA: std_logic_vector((N-1) downto 0);
signal  BB: std_logic_vector((N-1) downto 0);
signal  CC: std_logic_vector((N-1) downto 0);
signal  CCX: std_logic_vector((N-1) downto 0);
signal  CFXX: std_logic := '0';

signal	CFX: std_logic := '0';
signal  ZFX: std_logic := '0';
signal  SFX: std_logic := '0';
signal  OFX: std_logic := '0';
signal	CIX: std_logic := '0';

signal	use_adder : std_logic := '0';

begin
	--  Main opcode parsing -------------------------
	process(EN,OPCODE,A,B,CI)
	begin
		use_adder <= '0';
		case OPCODE is
		when "000000" =>		-- NOT B
			CC <= not B;
		when "000001" =>		-- AND
			CC <= A and B;
		when "000010" =>		-- OR
			CC <= A or B;
		when "000011" =>		-- XOR
			CC <= A xor B;
		when "000101" =>		-- NAND
			CC <= A nand B;
		when "000110" =>		-- NOR
			CC <= A nor B;
		when "000111" =>		-- EQV
			CC <= not (A xor B);
		when "001000" =>		--  SHL
			CC  <= '0' & A(N-1 downto 1);
			CFX <= A(0);
		when "001001" =>		-- SHR
			CC <= A(N-2 downto 0) & '0';
			CFX <= A(N-1);
		when "010010" =>		-- RCL
			CC <= CI & A(N-1 downto 1);
			CFX <= A(0);
		when "010011" =>		-- RCR
			CC <= A(N-2 downto 0) & CI;
			CFX <= A(N-1);
		when "010100" =>		-- SAL
			CC <= '0' & A(N-1 downto 1);
			CFX <= A(0);
		when "010101" =>		-- SAR
			CC <= A(N-2 downto 0) & A(N-1);
			CFX <= A(0);
		when "100000" =>		-- NEG
			AA <= not A;
			BB <= (BB'range => '0');
			CIX <= '1';
			use_adder <= '1';
		when "100001" =>		-- ADD
			AA <= A;
			BB <= B;
			CIX <= '0';
			use_adder <= '1';
		when "100010" =>		-- ADC
			AA <= A;
			BB <= B;
			CIX <= CI;
			use_adder <= '1';
		when "100100" =>		-- SUB
			AA <= A;
			BB <= not B;
			CIX <= '1';
			use_adder <= '1';
		when "100101" =>		-- SBC
			AA <= A;
			BB <= not B;
			CIX <= not CI;
			use_adder <= '1';
		when others =>			-- Default Zero
			CC <= (CC'range => '0');
		end case;
	end process;


	-- Adder mapping ----------------------------------
	 XADD:  add_NC
	 generic map (N => N)
	 port map(
	        A => AA,
	    	B => BB,
	    	X => CCX,
	    	C => CFXX,
		CI => CIX);

	--  Output data process --------------------------
	process(CCX,CC,CFXX,OPCODE)
	begin
		case ENX is
			when '1' =>
				if (use_adder = '1') then
					C <= CCX;
					CFLG <= CFXX;
				else
					C <= CC;
					OFX <= '0';
					SFX <= CC(N-1);
				end if;
				CFLG <= CFX;
				ZFLG <= ZFX;
				OFLG <= OFX;
				SFLG <= SFX;
			when others =>
				C <= (C'range => 'Z');
		end case;
	end process;
end Example;

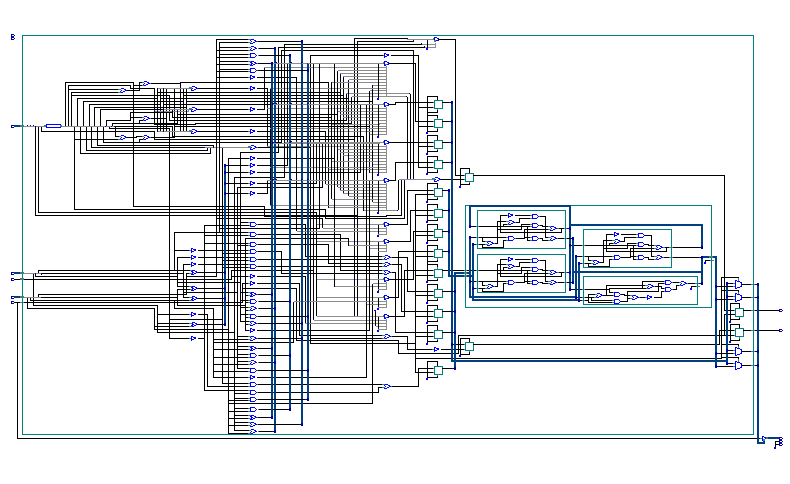

Результат синтеза ALU на 4бита.
