11.1.




Def
===
	 -
	  A  B    (S  P)
	    .

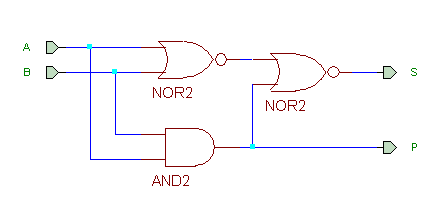

	[ HA = Half Adder ]



------+------- A B | P S ------+------- 0 0 | 0 0 0 1 | 0 1 1 0 | 0 1 1 1 | 1 0 -------------- XOR:

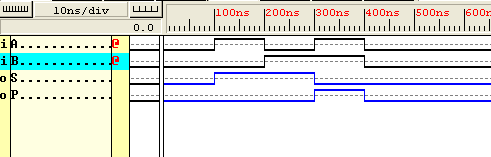

library ieee; use ieee.std_logic_1164.all; entity HSUM1 is port( B1, B2 : in std_logic; C, S : out std_logic); end HSUM1; architecture Example of HSUM1 is begin S <= ((B1 and (not B2)) or ((not B1) and B2)); C <= B1 and B2; end Example;
