5.6. ГЕНЕРАЦИЯ ИМПУЛЬСОВ ПО ФРОНТАМ


  По фронту




	library ieee;
	use ieee.std_logic_1164.all;

	entity FRONT_RISE is
		port(
	    		I : in std_logic;
	    		O : out std_logic);
	end FRONT_RISE;

	architecture Example of FRONT_RISE is
		signal NI:std_logic;	-- Data after inverter
	begin
		process(I)
		begin
			NI <= not I after 5 ns;
		end process;

		O <= I and NI after 1 ns;
	end Example;

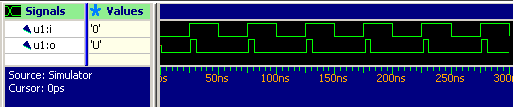

Результат симуляции:

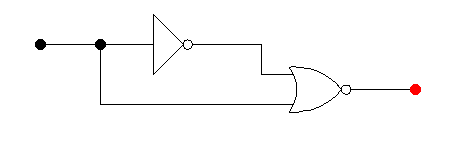

  По спаду




	library ieee;
	use ieee.std_logic_1164.all;

	entity FRONT_FALL is
		port(
	    		I : in std_logic;
	    		O : out std_logic);
	end FRONT_FALL;

	architecture Example of FRONT_FALL is
		signal NI:std_logic;	-- Data after inverter
	begin
		process(I)
		begin
			NI <= not I after 5 ns;
		end process;

		O <= I nor NI after 1 ns;
	end Example;

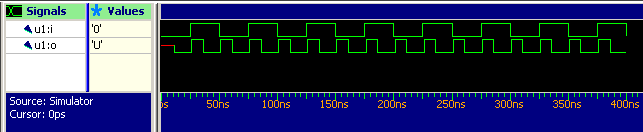

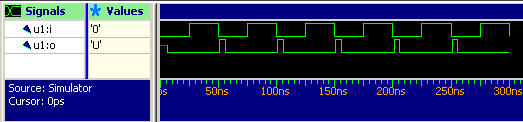

Результат симуляции:

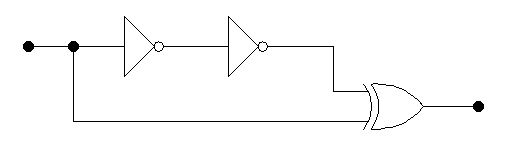

  По фронту и по спаду




	library ieee;
	use ieee.std_logic_1164.all;

	entity FRONT_BOTH is
		port(
		    I : in std_logic;
		    O : out std_logic);
	end FRONT_BOTH;

	architecture Example of FRONT_BOTH is
		signal NI:std_logic;	-- Data after 1st inverter
		signal NI2:std_logic;	-- Data after 2nd inverter
	begin
        	process(I)
		begin
			NI <= not I after 5 ns;
		end process;

		process(NI)
		begin
			NI2 <= not NI after 5 ns;
		end process;

		O <= I xor NI2 after 1 ns;
	end Example;
